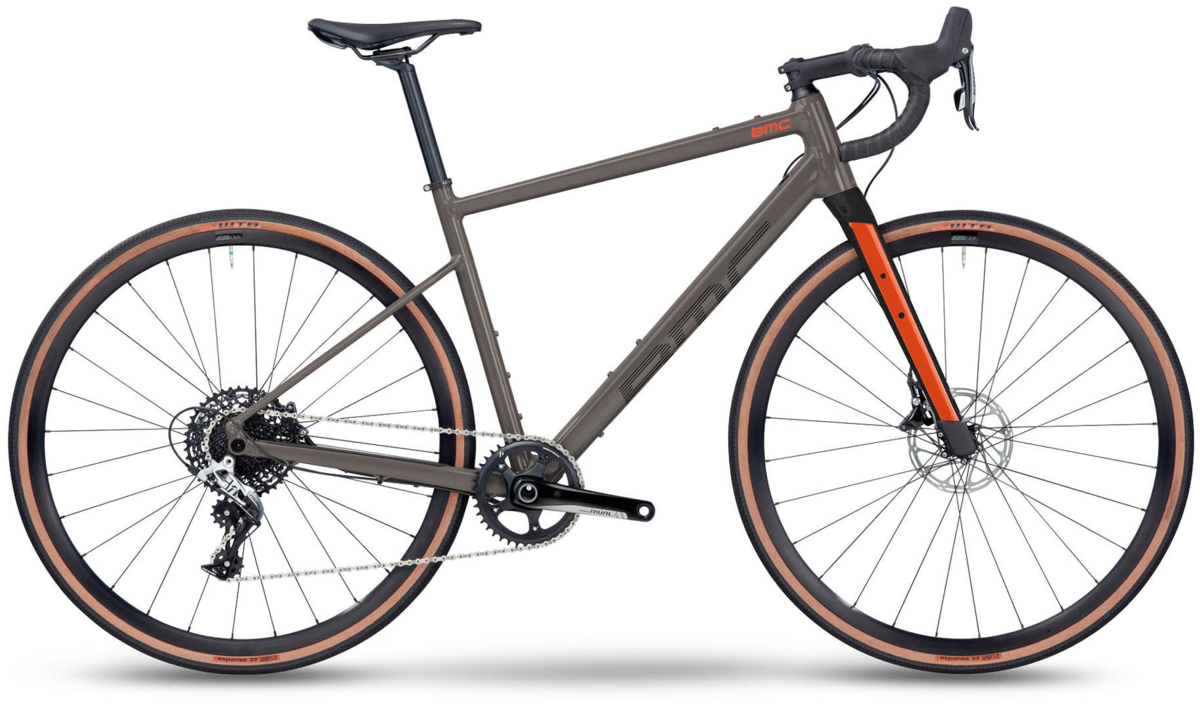

BMC Roadmachine AL X ONE - 2023

BMC Roadmachine AL X ONE
$1,799.00
$3,099.00
Color: Grey/Orange
Size: Select size
Please select options Unavailable

Details

The Roadmachine X AL ONE features a robust frameset that handles all the rough stuff. The Premium Aluminium frame and carbon fork were designed using TCC Gravel technology, with Gravel+ geometry. They feature fender, rack and cargo mounts, hub dynamo cable routing, a round seatpost and SRAM APEX components, and 32mm WTB tires on XRD-522 wheels.

Sizes:
SizeXSSMLXL
Rider Height < 165 162 - 172 170 - 182 180 - 192 >190
Reach 390 400 410 420 430
Stack 525 550 580 610 640
Bar Drop 125 125 125 125 125
Bar Reach 70 70 70 70 70
Bar Width 400 420 420 420 440
BB Drop 69 69 69 69 69
Crank Length 170 170 172.5 172.5 175
Fork Length 410 410 410 410 410
Fork Rake 45 45 45 45 45
Front Center 608 626 647 668 689
Head Tube 92 118 150 182 214
Head Tube Angle 70 70 70 70 70
Rear Center 430 430 430 430 430
Seat Angle 74 74 74 74 74
Seat Tube 430 445 475 505 540
Seatpost Length 350 350 350 350 350
Seatpost Offset 15 15 15 15 15
Standover Height 720 738 768 797 830
Stem Angle ±8 ±8 ±8 ±8 ±8
Stem Length 90 90 100 110 110
Top Tube 540 558 576 595 614
Trail 78 78 78 78 78
Wheelbase 1028 1047 1068 1089 1110

Specs

Frame Roadmachine X Premium Aluminium with Tuned Compliance Concept Gravel | Gravel+ Geometry | Internal Cable Routing | Fender and Rack Mounts | PF86 Bottom Bracket | Flat Mount Disc | 12x142mm Thru-Axle
Fork Roadmachine X Carbon with Tuned Compliance Concept Gravel | Internal Brake & Hub Dynamo Cable Routing | Fender Mounts | Cargo Mounts | Flat Mount Disc | 12x100mm Thru-Axle | Side Mounts
Rims XRD-522 | Tubeless Ready | 25 mm
Hubs XRD-522
Tires WTB Expanse | 32mm
Crankset SRAM Apex 1 DUB WIDE 42T
Shifters SRAM Apex
Rear Derailleur SRAM Apex XPLR
Cassette/Freewheel SRAM Apex XPLR 11-44
Chain SRAM Apex
Rotors SRAM Centerline 160 / 160 mm - Centerlock
Brake Levers SRAM Apex
Handlebars BMC RAB 03 | Ergo Top Shape | Compact Bend
Stem BMC RSM01
Seatpost BMC RSP03
Saddle Selle Royal

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Grey/Orange / X-Small 07630906506363 30004973 210000086284
Grey/Orange / Small 07630906506455 30004974 210000086286
Grey/Orange / Medium 07630906506448 30004975 210000086288
Grey/Orange / Large 07630906506431 30004976 210000086290
Grey/Orange / X-Large 07630906506424 30004977
