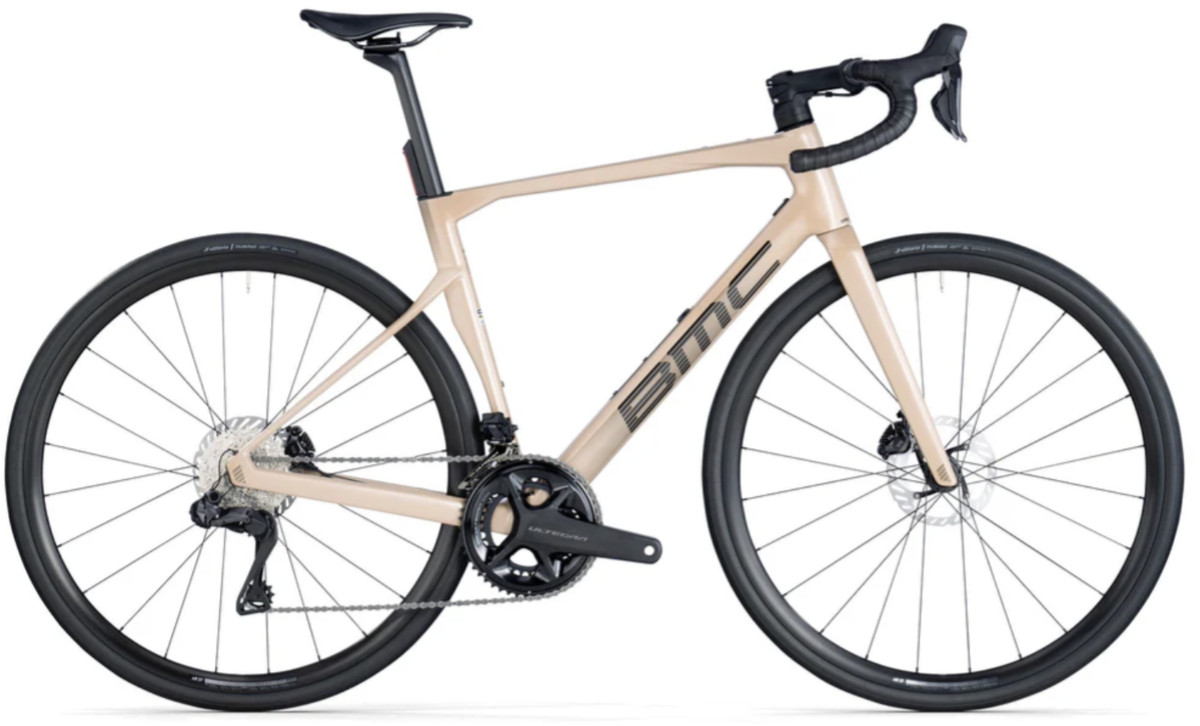

BMC Roadmachine One

Where endurance meets excellence. Featuring BMC carbon frame craftsmanship, full integration with the trusted Shimano Ultegra - every road is yours to master.

Frame:
Roadmachine Carbon with Tuned Compliance Concept Endurance | ICS Technology Stealth Cable Routing | Fender Mounts | Integrated Downtube Storage | Stealth Dropout Design | 12 x 142mm Thru-Axle

Fork:
Roadmachine Carbon with Tuned Compliance Concept Endurance | Internal Cable Routing | Fender Mounts | Flat Mount Disc | 12 x 100mm Thru-Axle | 50mm offset Size 47-51 | 45mm offset Size 54-61


Cockpit
Stem:
BMC RSM 01 | Integrated Cockpit System Technology

Handlebar:
BMC HB D4 03, 0, 12 | Alloy 6061 | Endurance Geometry | 125mm drop, 70mm reach, 12° flare


Seat
Seatpost:
Roadmachine Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible

Saddle:
Selle Italia Model X Superflow | FeC Alloy Rail | 145mm


Drivetrain
Crankset:
SHIMANO Ultegra (FC-R8100)

Chainrings:
50-34T

Cassette:
SHIMANO Ultegra (CS-R8101)

Cassette Size:
11-34T

Chain:
SHIMANO CN-M8100

Front Derailleur:
SHIMANO Ultegra Di2 (FD-R8150)

Rear Derailleur:
SHIMANO Ultegra Di2 (RD-R8150)

Shifters:
SHIMANO Ultegra Di2 (ST-R8170)

Gears:
2 x 12

Bottom Bracket:
SHIMANO Ultegra Press-Fit Bottom Bracket (SM-BB72-41B)


Brakes
Brake Levers / Calipers:
SHIMANO Ultegra (BR-R8170)

Rotors:
SHIMANO Ultegra (RT-CL800)

Rotor Size (F/R):
160 / 160mm


Wheels
Rims:
AR 27 | Tubeless Ready | 27mm [or] DT SWISS C1850 Spline

Hubs (F/R):
AR 27: CL-712 & RXC-142 Center Lock [or] C1850: DT Swiss Spline

Tires:
Vittoria Rubino V TLR | Tubeless | 32mm

Tubeless Information:
Tubeless Rim | Tubeless Tires


Accessories
In the Box:
Integrated Rear Light 25 | Storage Pouch

Additional Information
Tire Clearance:
up to "40mm measured" (frameset clearance) but limited to "34mm measured" by the front derailleur

Weight without Pedals:
8.6kg | Size 54 as pictured with all accessories
