Cervelo Aspero Rival XPLR AXS 1 - 2024

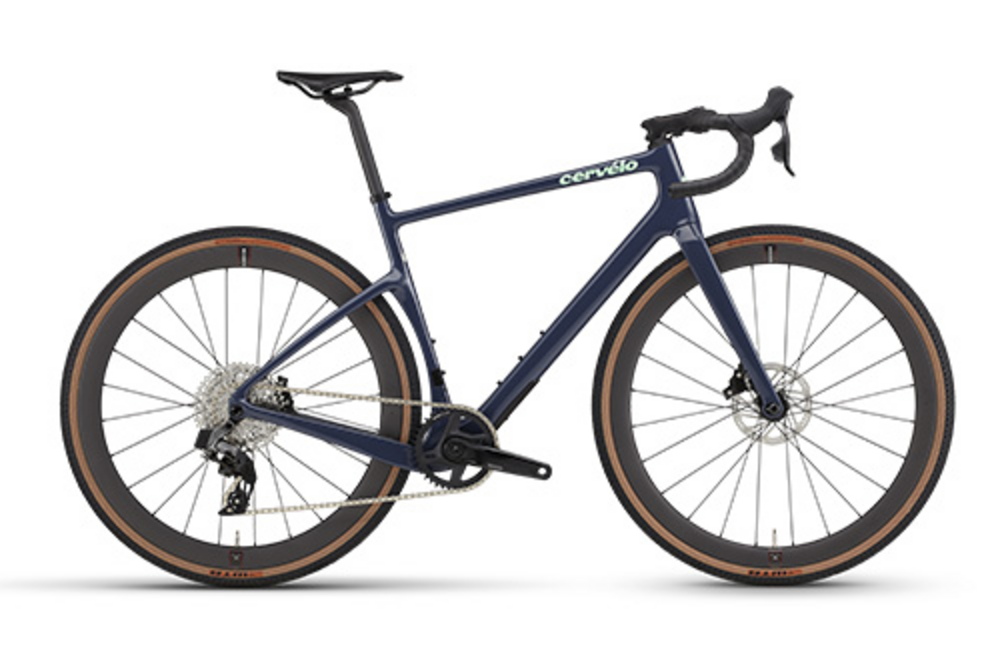

Cervelo Aspero Rival XPLR AXS 1
  • Color: Woodsmoke
  • Color: Sea Ice
$5,500.00
Color:
Size: Select size
Wheel Size: 700c
Please select options Unavailable

Details

HAUL ASS, NOT CARGO

In 2019, Áspero took the gravel world by storm, heralding a “new era of speed in gravel.” Fun, but flat out. The new Áspero remains true to its original brief, but with some improvements: a threaded BB shell, neater cable routing, and a UDH-compatible derailleur hanger for those who want to use SRAM’s Transmission drivetrains. And it’s more aero, of course. In the case of Áspero, aerodynamic performance is less about pure speed as a result of drag reduction, and more about conservation of energy. After a big day in a headwind, the three watts saved over the previous Aspero might add up to one less energy gel your stomach has to digest—WORTH IT.

In addition to the drag reduction, we also dropped the seat stays to give a bit more compliance out back, and reduced front-end stiffness slightly to make the last hours of a long race less painful. Between those dropped seat stays, we added in a bit more clearance for mud, too, taking what we learned from R5-CX (and the Unbound mudfest in 2023). It’s a lot of seemingly small improvements, but they add up to a lot. The result is a bike that feels a lot like the original Áspero, but is faster, more comfortable, and more versatile.

THREADED BOTTOM BRACKET
Aspero uses the asymmetrical T47a threaded bottom bracket we pioneered on R5-CX. It’s a simple, rider-serviceable interface that allows us to deliver the benefits of BBRight in a more user-friendly form.

UNIVERSAL DERAILLEUR HANGAR
We used SRAM’s Universal Derailleur Hanger (UDH) standard on the new Aspero. It’s ideal if you want to live your best ‘business in the front, party in the back’ life with one of SRAM’s Transmission drivetrains today, and ensures compatibility for future drivetrain developments.

INTERNAL CABLE ROUTING
Aspero shares the same bearing dimensions as R5, Soloist, R5-CX, and Caledonia, which means you can use any combination of bearing caps and stems. Want a super-racy, fully-internal look? Grab the ST31 and HB13 from R5.

Sizes:
485154565861
Reach | mm370 379388397406415
Stack | mm505 530555580605630
Head Tube Angle71° 71.5°72°72°72°72°
Front Center | mm577/582 587/592597/602614/619631/637648/654
Bottom Bracket Drop | mm78.5 78.5767673.573.5
Head Tube Length | mm83 107133159188214
Top Tube Length | mm512 532553575591608
Seat Tube Angle74.5° 74°73.5°73°73°73°
Standover Height | mm681 704733757784808
Trail | mm
Wheel Size700C 700C700C700C700C700C
Fork Offset | mm52/57 49/5446/5146/5146/5146/51
Wheelbase | mm990/995 999/10041010/10151028/10331046/10511063/1068
Chainstay Length | mm425 425425425425425

Specs

Fork Cervélo All-Carbon, Tapered Aspero Fork
Stem Cervélo ST36 Alloy, w Cable Management
Chain SRAM Rival, 12 speed
Tires WTB Vulpine TCS Light Fast Rolling Dual DNA 60tpi 700x40c
Brakes SRAM Rival
Rotors SRAM Centerline Centerlock
Saddle Prologo Dimension STN
Wheels Front: Reserve 40, 25.5mm IW, Zipp 76, 24H, centerlock, tubeless compatible | Rear: Reserve 44, 25mm IW, Zipp 176,12x142mm, XDR freehub, 24H, centerlock, tubeless compatible
Headset FSA IS2 1-1/4 x 1-1/2
Crankset SRAM Rival, 40T, DUB Wide
Seatpost Cervélo SP19 Carbon 27.2
Handlebars Cervélo AB09 Carbon, 31.8mm clamp, 16 degree flare
Bottom Bracket SRAM DUB Wide, T47 BBright
Rear Derailleur SRAM Rival XPLR AXS, 12 speed
Accessories & Extras Smartpak 400A Top Tube Storage Bag
Cassette/Freewheel SRAM Rival XPLR, 10-44, 12 Speed
Shifters SRAM Rival AXS, 12 speed

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Sea Ice / 48cm / 700c 42677657378 0J0ASBXV2C48
Sea Ice / 56cm / 700c 42677657408 0J0ASBXV2C56
Sea Ice / 54cm / 700c 42677657392 0J0ASBXV2C54
Woodsmoke / 58cm / 700c 42677657354 0J0ASBXV1C58
Sea Ice / 58cm / 700c 42677657415 0J0ASBXV2C58
Woodsmoke / 61cm / 700c 42677657361 0J0ASBXV1C61
Woodsmoke / 51cm / 700c 42677657323 0J0ASBXV1C51
Woodsmoke / 54cm / 700c 42677657330 0J0ASBXV1C54
Sea Ice / 51cm / 700c 42677657385 0J0ASBXV2C51
Woodsmoke / 56cm / 700c 42677657347 0J0ASBXV1C56 210000084003
Woodsmoke / 48cm / 700c 42677657316 0J0ASBXV1C48
Sea Ice / 61cm / 700c 42677657422 0J0ASBXV2C61
